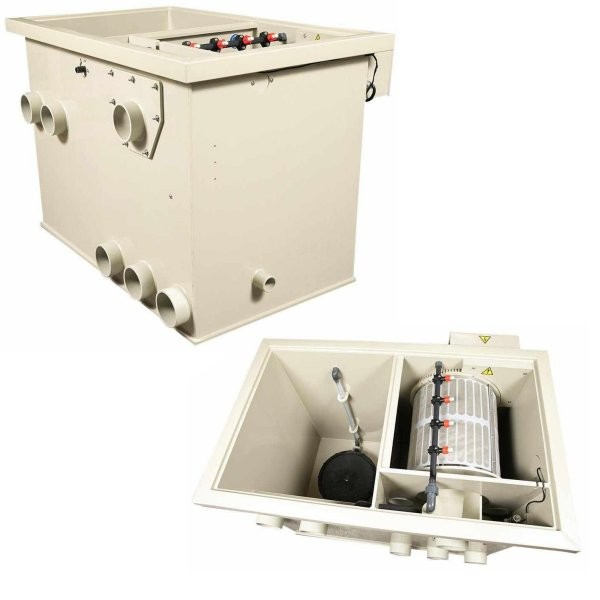

C-25 Gravity Fed Sea Side Aquatics Combi Filter
Unit comes with k1 media and external cleaning up ( required installation )
| Maximum Flow 25 m3 / h |
| Gravity / Airlift / Pump fed |
| Pump fed loses 30% Flow |
| Installation height above water level 16 cm |
| Materials: |
| Housing PP 8 mm / PP15 mm / Drum PP 20 |
| Stainless steel 316/304 / Silicone seal |
| PP Casing Cut With A CNC Machine |
| Specifications: |
| Standard inputs and outputs according to drawing |
| 1 x 110 mm Waste water outlet |
| Diameter of the drum 38 cm x 40 cm |
| Sieve panel 120 or 75 micron stainless steel 316 |
| Drum Bypass 2 x 90 mm |
| Demountable spray bar |
| Removable flushing channel |
| 40 NM drive motor with 2.5 rpm |
| With a lid |
| Control box: |
| Automatic cleaning, plug and play with stainless steel float |
| Turn / rinse manual control |
| Adjustable turn / flush time |
| Rinse level adjustable |
| Sockets for flushing pump, pond pump and drum drive motor |
| Standard dry run protection for pond pump |
| All parts built in modules and therefore quickly interchangeable |
| Bio chamber for 90 liters of Helix |
| Air disc of 34 cm |
| Supplied with comprehensive manual |
| With CE quality mark |
Item#
Description
Price
C25 grav com
C-25 Gravity Fed Sea Side Aquatics Combi Filter
$ 4100.00
